品牌：SAMSON

型号：

Spare Part kit for Actuator 3271 with rest spares

Diaphragm area: 350cm2 , Travel: 15mm Includes: 

Diaphragm 350cm2 (PN 0520-0525) 

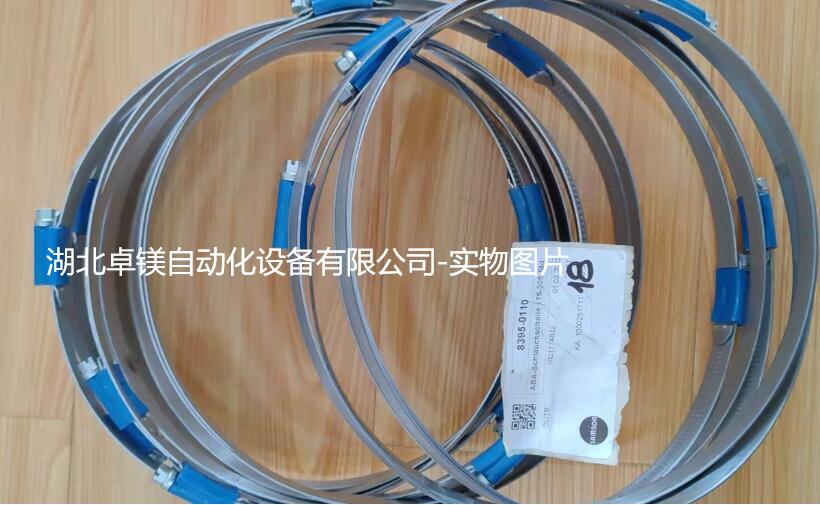

Hose clamp (PN 8395-0110) 

Hexagonal Collar nut (PN 8353-0539) 

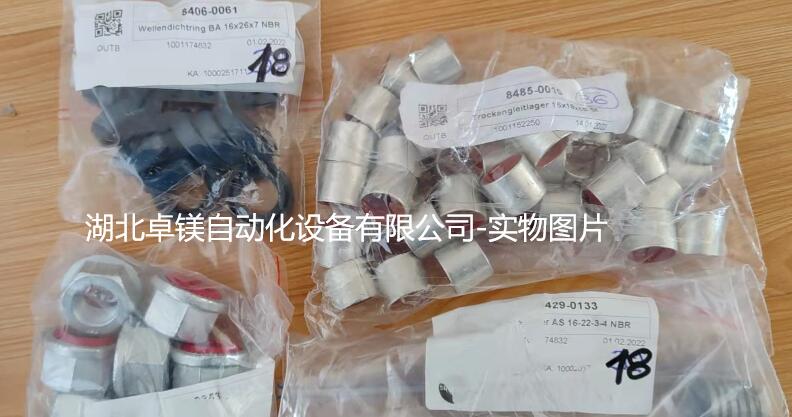

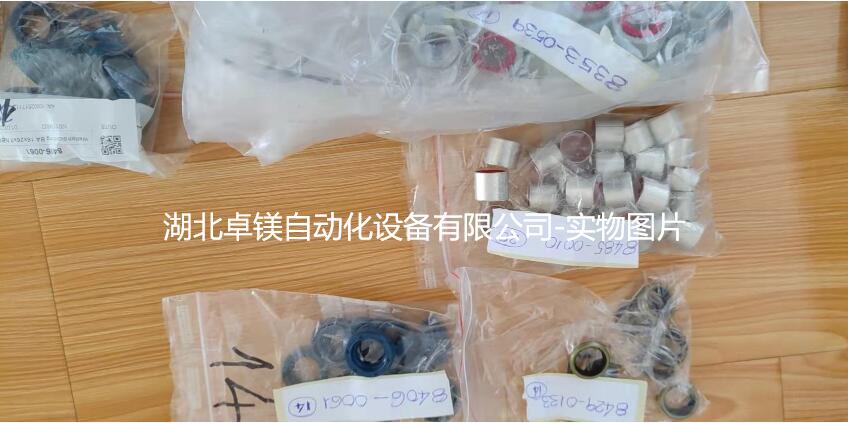

Shaft sealing ring NBR/1.4310 (PN 8406-0061) 

Dry bearing with steel backing (PN 8485-0010) 2pcs 

Wiper 16x22x3/4 (PN 8429-0133)

Spare Part kit for Actuator Type 3271 with rest spares

Diaphragm area: 700cm2 , Travel: 15mm Includes: 

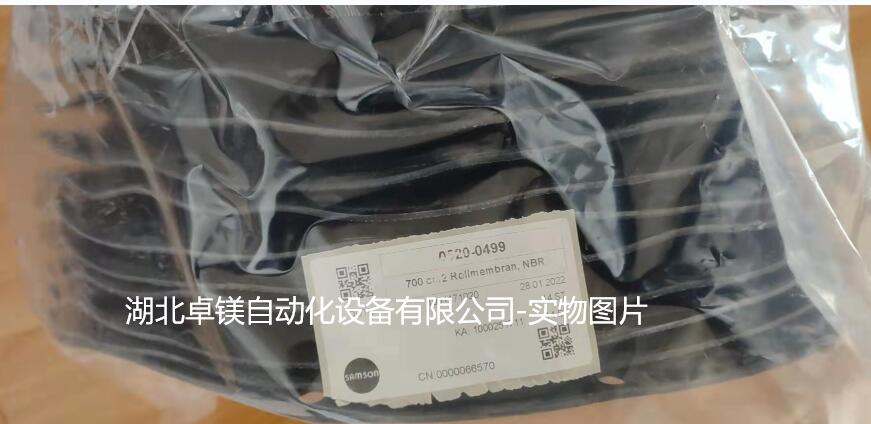

Diaphragm 700cm2 (PN 0520-0499) 

Hose clamp (PN 8395-0115) 

Hexagonal Collar nut (PN 8353-0539) 

Shaft sealing ring NBR/1.4310 (PN 8406-0061) 

Dry bearing with steel backing (PN 8485-0010)2pcs 

Wiper 16x22x3/4 (PN 8429-0133)
